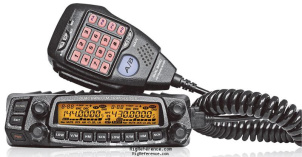

Tri-band version of the Anytone AT-5888UV

General characteristics

HAM bands
2m  1.25m  70cm
Frequency stability
± 2.5 p.p.m.
Tuning steps
2.5 / 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 50 kHz
Memories
758 channels in 1 bank(s)

Receiver

RX-range
108-134 / 134-174 / 200-260 / 400-490 MHz
Modulations
AM   FM   N-FM
Sensitivity
W-FM ≤ 0.25 μV (12 dB SINAD)
N-FM ≤ 0.35 μV (12 dB SINAD)
Selectivity
12.5 / 25 kHz
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
≥ 60 dB
Audio output
2 W @ 10% THD

Transmitter

TX-range
134-174 / 200-260 / 400-490 MHz
Modulations
FM   N-FM
RF-output
55 / 10 / 5 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8 V DC (±15%)
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
139 × 40 × 212 mm (5.47 × 1.57 × 8.35 in)
Weight
1.14 kg (2.5 lbs)
Form factor
Mobile
Manufactured
Between 2014 and 20xx in China

Other features

Usage
Amateur / Ham radio operators
Features + options
CTCSS/PL
DCS
DTMF
2-tone/5-tone signalling
scrambler
Twin RX (V/U, V/V, U/U configuration)
Accessories
-
RigReference ID
6415
MPN
ANYTONE-AT-005888UV-III

Manuals, diagrams and brochures

Anytone AT-5888UV III user manual PDF - 4.30 MB, submitted by Erich

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Anytone AT-5888UV III. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Anytone AT-5888UV III is around:

  • USD 181.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2016 USD 300.00 New / Mint Erich
