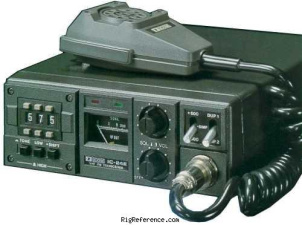

The ICOM IC-24E is a Mobile VHF Transceiver. It covers 144-146 MHz for both receive and transmit. The RF output power is selectable between High: 10 W and Low: 1 W. It requires 13.8V DC power. Dimensions are 58 × 156 × 218 mm. Current drain in receive mode is Max 500 mA, and Max 2.3 A in transmit mode.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- 5 kHz
- Memories
- ?
Receiver
- RX-range
- 144-146 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- FM
- RF-output
- High: 10 W, Low: 1 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 500 mA
- TX
- Max 2.3 A
Physical
- Dimensions (w×h×d)
- 156 × 58 × 218 mm (6.14 × 2.28 × 8.58 in)
- Weight
- 1.70 kg (3.8 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1981 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3012
- MPN
- ICOM-IC-000024E
