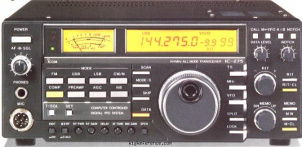

The ICOM IC-275E is a desktop VHF transceiver. It covers 138-174 MHz in receive and 144-146 MHz in transmit. The RF output power is 2.5-25 W. It features 99 memory channels in one memory bank. The IC-275E has CI-V capability. Power requirements are 13.8V DC or mains. Dimensions are 95 × 241 × 239 mm and it weighs 6.2 kg. Current drain is 0.9-1 A in receive and a maximum of 6 A in transmit.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 99 channels in 1 bank(s)
Receiver
- RX-range
- 138-174 MHz
- Modulations
- FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- FM CW SSB
- RF-output
- 2.5-25 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC or mains
- Current drain RX
- 0.9-1 A
- TX
- Max 6 A
Physical
- Dimensions (w×h×d)
- 241 × 95 × 239 mm (9.49 × 3.74 × 9.41 in)
- Weight
- 6.20 kg (13.7 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1987 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CI-V
- Accessories
- -
- RigReference ID
- 3032
- MPN
- ICOM-IC-000275E
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-275E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the ICOM IC-275E is around:
- USD 215 ~ USD 400
This estimate is based on similar equipment and may not reflect the exact value of this model.
