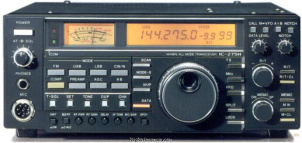

ICOM IC-275H

Desktop VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The ICOM IC-275H is a desktop VHF transceiver. It covers 138-174 MHz for reception and transmits on 144-146 MHz (Europe) or 144-148 MHz (USA). RF output is selectable from 10-100 W. The radio features 99 memory channels in one bank and requires 13.8V DC power. It includes CI-V remote control capabilities. Dimensions are 95 × 241 × 239 mm. Current drain during reception is 0.9-1 A, and maximum current drain during transmission is 20 A.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: ?
Memories: 99 channels in 1 bank(s)

Receiver

RX-range: 138-174 MHz
Modulations: FM CW SSB
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 MHz (Europe)
144-148 MHz (USA)
Modulations: FM CW SSB
RF-output: 10-100 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: 0.9-1 A
TX: Max 20 A

Physical

Dimensions (w×h×d): 241 × 95 × 239 mm (9.49 × 3.74 × 9.41 in)
Weight: 6.00 kg (13.2 lbs)
Form factor: Base Station
Manufactured: Between 1987 and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: CI-V
Accessories: -
RigReference ID: 3033
MPN: ICOM-IC-000275H
