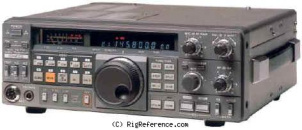

The Kenwood TS-711E is a desktop VHF transceiver. It covers 144-146 MHz for both transmit and receive. The RF output power is selectable between 2-25 W. It features 1 memory bank with 40 channels and DCS. The radio weighs 7.1 kg and requires 12-16V DC or mains power. Dimensions are 96 × 270 × 260 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 40 channels in 1 bank(s)
Receiver
- RX-range
- 144-146 MHz
- Modulations
- FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- FM CW SSB
- RF-output
- 2-25 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 12-16V DC or mains
- Current drain RX
- Max 1.3 A
- TX
- Max 6.5 A
Physical
- Dimensions (w×h×d)
- 270 × 96 × 260 mm (10.63 × 3.78 × 10.24 in)
- Weight
- 7.10 kg (15.7 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1984 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- DCS
- Accessories
- -
- RigReference ID
- 3504
- MPN
- KENWOOD-TS-000711E
Manuals, diagrams and brochures
- Kenwood TS-711 & TS-811 Service Manual PDF - Unknown size, submitted by RigReference
- Kenwood TS-711 User Manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
Reviews & stories
| Rating | Title | Submitted |
|---|---|---|
| Great first 2M SSB rig! | 8 years ago by rreh917 | |
| What a lovely radio | 11 years ago by stevie.quinn | |
| Strong oldie | 12 years ago by OZ5ES |
