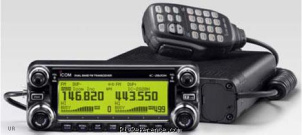

ICOM IC-2820H

General characteristics

HAM bands

2m

Frequency stability

?

Tuning steps

5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 kHz

Memories

522 channels in 1 bank(s)

Receiver

RX-range

118-550 / 810-999.99 MHz (Cellular blocked)

Modulations

AM   FM   N-FM   DV

Sensitivity

<0.18 µV (12 dB SINAD)

Selectivity

FM: 10 kHz (-6 dB), 30 kHz (-60 dB)
FM-N: 6 kHz (-6 dB), 20 kHz (-60 dB)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

>60 dB

Audio output

?

Transmitter

TX-range

144-148 / 430-450 MHz (USA)

Modulations

FM   N-FM   DV

RF-output

High: 50/50 W, Medium: 15/15 W, Low: 5/5 W

Connections

Antenna

SO-239

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC +/- 15%

Current drain RX

1.2-1.8 A

TX

Max 13 A

Physical

Dimensions (w×h×d)

150 × 40 × 188 mm (5.91 × 1.57 × 7.40 in) controller: 1505832 mm

Weight

2 gr (0.1 oz) Main unit + Controller

Form factor

Mobile

Manufactured

Between 2007 and 200x

Other features

Usage

Amateur / Ham radio operators

Features + options

DTMF. CTCSS. WX alert (US only). D-Star DV/GPS option (UT-123). Diversity reception. Twin RX.

Accessories

-

RigReference ID

3041

MPN

ICOM-IC-002820H

Manuals, diagrams and brochures

ICOM IC-2820H Instruction Manual.pdf PDF - Unknown size, submitted by RigReference



Upload relevant documents

Reviews & stories

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-2820H. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-2820H is around:

• EUR 178.00 ~ EUR 90.00
• USD 43.00 ~ USD 205.00
• AUD 69.00

Price History Chart

These estimates are based on the following prices:
