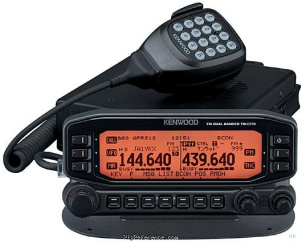

The Kenwood TM-D710A is a mobile VHF/UHF transceiver. It covers 144-148 / 430-450 MHz for transmitting and 136-524 / 800-1300 MHz (Cellular blocked) for receiving. The receiver system is a double conversion superheterodyne with IF frequencies of 1st: 45.05 MHz (Band A), 49.95 MHz (Band B) and 2nd: 455 kHz (Band A), 450 kHz (Band B). The RF output is 50 / 10 / 5 W. It features a built-in TNC 1K2/9K6, APRS and twin RX. The TM-D710A weighs 1.5 kg and requires 13.8V DC ±15%. Dimensions are 43 × 140 × 142 mm. The current drain is 1.2 A max (RX) and 13 A max (TX).
General characteristics
- HAM bands
- 2m
- Frequency stability
- ±5 p.p.m.
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 136-524 / 800-1300 MHz (Cellular blocked)
- Modulations
- AM FM
- Sensitivity
- 146/440 MHz: <0.16 µV (12 dB SINAD)
- Selectivity
- -6 dB: More than 11 kHz
-40 dB: Less than 30 kHz - Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 45.05 MHz (Band A), 49.95 MHz (Band B)
2nd: 455 kHz (Band A), 450 kHz (Band B) - Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 / 430-450 MHz
- Modulations
- FM
- RF-output
- 50 / 10 / 5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC ±15%
- Current drain RX
- 1.2 A max
- TX
- 13 A max
Physical
- Dimensions (w×h×d)
- 140 × 43 × 142 mm (5.51 × 1.69 × 5.59 in) Panel: 155×138×70 mm
- Weight
- 1.50 kg (3.3 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2007 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Built-in TNC 1K2/9K6, APRS. Twin RX
- Accessories
- -
- RigReference ID
- 3428
- MPN
- KENWOOD-TM-D000710A
Manuals, diagrams and brochures
- TM-D710A SM PDF - 4.86 MB, submitted by Berend
- Upload relevant documents
Reviews & stories
| Rating | Title | Submitted |
|---|---|---|
| Kenwood TM-D710A review. | 9 years ago by rreh917 | |
| I wish I had a few more of them | 15 years ago by NE3R |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TM-D710A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Kenwood TM-D710A is around:
- USD 70.00 ~ USD 47.00
- CAD 80.00 ~ CAD 54.00
These estimates are based on the following prices:
