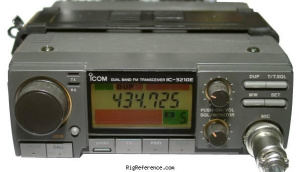

ICOM IC-3210E

Mobile VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The ICOM IC-3210E is a mobile VHF/UHF transceiver. It covers 138-174 / 400-470 MHz for reception and 144-146 / 430-440 MHz for transmission. The receiver system uses double conversion superheterodyne with IF frequencies of 1st: 30.875 MHz - Crystal filter: 30M15B and 2nd: 455 KHz - Ceramic filter: CFW455E. RF output is High: 25/25 W, Low: 5/5 W. It features 1 memory bank with 20 channels. CTCSS/PL for TX is standard while CTCSS/PL for RX is optional. The transceiver weighs 1.2 kg and requires 13.8V DC +/- 15%. Dimensions are 50 × 140 × 180 mm.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ?
Tuning steps: ?
Memories: 20 channels in 1 bank(s)

Receiver

RX-range: 138-174 / 400-470 MHz
Modulations: FM
Sensitivity: 0.18 µV (12 dB SINAD)
Selectivity: 12.5 kHz (-6 dB), 30 kHz (-60 dB)
Filters: ?
Receiver system: Double conversion superheterodyne
IF-frequencies: 1st: 30.875 MHz - Crystal filter: 30M15B
2nd: 455 KHz - Ceramic filter: CFW455E
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 / 430-440 MHz
Modulations: FM
RF-output: High: 25/25 W, Low: 5/5 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC +/- 15%
Current drain RX: 550-900 mA
TX: 3.6-7.6 A

Physical

Dimensions (w×h×d): 140 × 50 × 180 mm (5.51 × 1.97 × 7.09 in)
Weight: 1.20 kg (2.6 lbs)
Form factor: Mobile
Manufactured: Between 1988 and 1990 in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: CTCSS/PL for TX is standard while CTCSS/PL for RX is optional.
Accessories: -
RigReference ID: 3067
MPN: ICOM-IC-003210E
