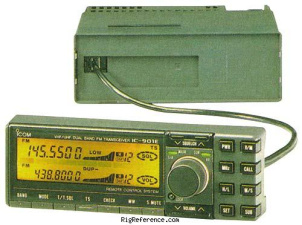

ICOM IC-901E

General characteristics

HAM bands

2m  70cm

Frequency stability

?

Tuning steps

?

Memories

24 channels in 2 bank(s)

Receiver

RX-range

144-146 / 430-440 MHz

Modulations

FM

Sensitivity

0.18 µV (12 dB SINAD)

Selectivity

?

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

1st: 17.2 MHz (VHF), 30.875 MHz (UHF) - No options installed
2nd: 455 kHz

Image rejection

> 60 dB

Audio output

2.4 W at 10% distortion / 8 ohm

Transmitter

TX-range

144-146 / 430-440 MHz

Modulations

FM

RF-output

High: 50/35 W, Low: 5/5 W

Connections

Antenna

SO-239 + N-type

Impedance

50Ω

Other

-

Electrical

Power requirements

11-16V DC

Current drain RX

0.85-1.4 A

TX

Max 12 A

Physical

Dimensions (w×h×d)

150 × 50 × 191 mm (5.91 × 1.97 × 7.52 in)

Weight

1.60 kg (3.5 lbs)

Form factor

Mobile

Manufactured

Between 1989 and 1990 in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

Modular and expandable design
CTCSS/PL encoder
Twin RX

Accessories

-

RigReference ID

3179

MPN

ICOM-IC-000901E
