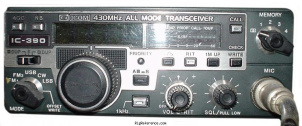

The ICOM IC-390 is a Mobile 70cm Transceiver. It covers 430-440 MHz for both reception and transmission with 1 kHz tuning steps. The RF output power is selectable between 1 W and 10 W. It features AGC, NB and an internal speaker. There are 4 memory channels in 1 memory bank. Power requirements are 13.8 V DC.
General characteristics
- HAM bands
- 70cm
- Frequency stability
- ?
- Tuning steps
- 1 kHz
- Memories
- 4 channels in 1 bank(s)
Receiver
- RX-range
- 430-440 MHz
- Modulations
- FM CW USB LSB
- Sensitivity
- FM: -6dBuV input S / N30dB (F = 433.0 MHz)
SSB: -20dBuV input S / N10dB (F = 433.00 MHz) - Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- Internal speaker
Transmitter
- TX-range
- 430-440 MHz
- Modulations
- FM CW USB LSB
- RF-output
- 1 / 10 W
Connections
- Antenna
- N-type
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 198x and 198x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- AGC
NB - Accessories
- -
- RigReference ID
- 3084
- MPN
- ICOM-IC-000390
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-390. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the ICOM IC-390 is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
