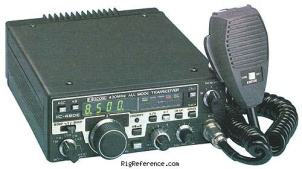

The ICOM IC-490E is a mobile UHF transceiver. It covers 430-440 MHz for both reception and transmission. Tuning steps are FM: 1 / 5 / 25 kHz, SSB/CW: 0.1 kHz. The receiver system is a double conversion superheterodyne with IF frequencies of 1st: 39380 kHz and 2nd: 1075 kHz. RF output is selectable as High: 10 W or Low: 1 W. Audio output is through an internal speaker. It features dual VFO's and scanning. Memory capacity includes 1 bank with 4 channels. Power requirements are 13.8V DC. Dimensions are 64 × 170 × 218 mm. Current drain during transmit is 3.6 A max.
General characteristics
- HAM bands
- 70cm
- Frequency stability
- ?
- Tuning steps
- FM: 1 / 5 / 25 kHz, SSB/CW: 0.1 kHz
- Memories
- 4 channels in 1 bank(s)
Receiver
- RX-range
- 430-440 MHz
- Modulations
- FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 39380 kHz
2nd: 1075 kHz - Image rejection
- ?
- Audio output
- internal speaker
Transmitter
- TX-range
- 430-440 MHz
- Modulations
- FM CW SSB
- RF-output
- High: 10 W, Low: 1 W
Connections
- Antenna
- N-type
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- 3.6 A max
Physical
- Dimensions (w×h×d)
- 170 × 64 × 218 mm (6.69 × 2.52 × 8.58 in)
- Weight
- 2.60 kg (5.7 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1982 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Dual VFO's. Scanning
- Accessories
- -
- RigReference ID
- 3104
- MPN
- ICOM-IC-000490E
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-490E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the ICOM IC-490E is around:
- USD 215 ~ USD 400
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
