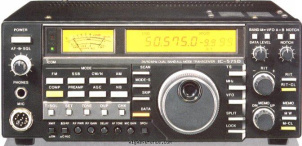

The ICOM IC-575D is a desktop HF/VHF transceiver. It covers 26-56 MHz for reception and 28-29.7/50-54 MHz for transmission. RF output power is AM: 2-20 W, FM/SSB/CW: 2-50 W. The radio features 1 memory bank with 99 channels. It requires 13.8V DC or mains power. Dimensions are 95 × 241 × 239 mm and it weighs 6.1 kg. Current drain is 1.4-1.6 A in receive mode and a maximum of 15 A in transmit mode.
General characteristics
- HAM bands
- 6m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 99 channels in 1 bank(s)
Receiver
- RX-range
- 26-56 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- AM: <1 µV (10 dB S/N)
FM: <0.25 µV (12 dB SINAD)
SSB/CW: <0.13 µV (10 dB S/N) - Selectivity
- AM: 6 kHz (-6 dB), 15 kHz (-60 dB)
FM: 15 kHz (-6 dB), 30 kHz (-60 dB)
SSB/CW: 2.3 kHz (-6 dB), 4 kHz (-60 dB) - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 28-29.7/50-54 MHz
- Modulations
- AM FM CW SSB
- RF-output
- AM: 2-20 W, FM/SSB/CW: 2-50 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC or mains
- Current drain RX
- 1.4-1.6 A
- TX
- Max 15 A
Physical
- Dimensions (w×h×d)
- 241 × 95 × 239 mm (9.49 × 3.74 × 9.41 in)
- Weight
- 6.10 kg (13.5 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1988 and 199x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3122
- MPN
- ICOM-IC-000575D
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-575D. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the ICOM IC-575D is around:
- USD 215 ~ USD 400
This estimate is based on similar equipment and may not reflect the exact value of this model.
