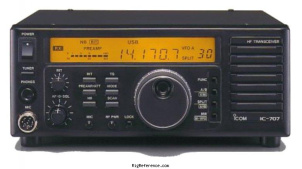

The ICOM IC-707 is a 10-160 m + WARC transceiver. RF output is 10-100 W (AM 4-40 W). Power requirements are 13.8V DC or mains. The radio weighs 4.1 kg and has dimensions of 95 × 240 × 239 mm.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.5-30 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC
- Modulations
- AM FM CW SSB
- RF-output
- 10-100 W (AM 4-40 W)
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC or mains
- Current drain RX
- ?
- TX
- Max 20 A
Physical
- Dimensions (w×h×d)
- 240 × 95 × 239 mm (9.45 × 3.74 × 9.41 in)
- Weight
- 4.10 kg (9.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1993 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3132
- MPN
- ICOM-IC-000707
Manuals, diagrams and brochures
- ic707 operstpr manual.pdf PDF - 3.99 MB, submitted by Loris Bollina
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-707. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the ICOM IC-707 in Good condition is around:
- EUR 400
These estimates are based on the following prices:
