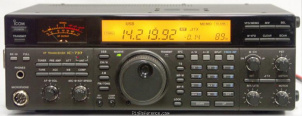

The ICOM IC-737 is a 10-160 m + WARC transceiver supporting AM/SSB modulations. Maximum RF output is 100 W PEP (AM 4-40 W). The radio features a built-in keyer and requires 13.8V DC power. Dimensions are 111 × 330 × 285 mm.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.03-30 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC
- Modulations
- AM FM CW SSB
- RF-output
- 10-100 W (AM 4-40 W)
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- Max 20 A
Physical
- Dimensions (w×h×d)
- 330 × 111 × 285 mm (12.99 × 4.37 × 11.22 in)
- Weight
- 8.00 kg (17.7 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1993 and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Built-in keyer
- Accessories
- -
- RigReference ID
- 3147
- MPN
- ICOM-IC-000737
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
Reviews & stories
| Rating | Title | Submitted |
|---|---|---|
| Sturdy, dependable and a joy to use. | 14 years ago by KJ4RWH |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-737. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the ICOM IC-737 is around:
- USD 64.00
