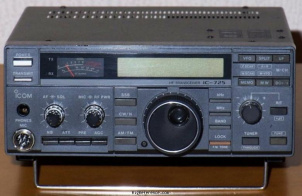

The ICOM IC-725 is a 10-160 m + WARC transceiver. It has an RF output of 100 W and requires 13.8V DC power. The current drain in receive mode is 1.2-1.5 A and max 20 A in transmit mode. Dimensions are 94 × 241 × 239 mm.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.5-30 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- AM: <2 µV (10 dB S/N)
FM: <0.5 µV (12 dB SINAD)
SSB/CW: <0.15 µV (10 dB S/N) - Selectivity
- AM: >6 kHz (-6 dB), <20 kHz (-60 dB)
FM: >15 kHz (-6 dB), <30 kHz (-60 dB)
SSB/CW: >2.3 kHz (-6 dB), <4 kHz (-60 dB) - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC
- Modulations
- AM FM CW SSB
- RF-output
- 100 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 1.2-1.5 A
- TX
- Max 20 A
Physical
- Dimensions (w×h×d)
- 241 × 94 × 239 mm (9.49 × 3.70 × 9.41 in)
- Weight
- 4.70 kg (10.4 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1988 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3139
- MPN
- ICOM-IC-000725
