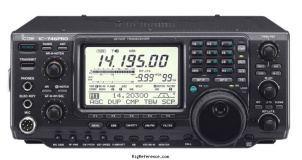

The ICOM IC-746 Pro is a desktop HF/VHF transceiver. It covers 0.03-60 / 108-174 MHz (receive) and 10-160 m + WARC / 50-54 / 144-148 MHz (transmit). RF output is 5-100 W (AM: 5-40 W). It features a 32 bit DSP and CI-V Auto-ATU: 17-150 ohms (HF), 20-125 ohms (6 m). The IC-746 Pro requires 13.8V DC, with a current drain of 2.2-3 A (receive) and max 23 A (transmit). Dimensions are 120 × 287 × 316 mm and it weighs 9 kg.

General characteristics

HAM bands
160m  80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  6m  2m  10m
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
0.03-60 / 108-174 MHz
Modulations
AM   FM   CW   SSB   RTTY
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
10-160 m + WARC / 50-54 / 144-148 MHz
Modulations
AM   FM   CW   SSB   RTTY
RF-output
5-100 W (AM: 5-40 W)

Connections

Antenna
-
Impedance
50 Ω
Other
-

Electrical

Power requirements
13.8V DC
Current drain RX
2.2-3 A
TX
Max 23 A

Physical

Dimensions (w×h×d)
287 × 120 × 316 mm (11.30 × 4.72 × 12.44 in)
Weight
9.00 kg (19.9 lbs)
Form factor
Base Station
Manufactured
Between 2001 and 200x in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
32 bit DSP, CI-V Auto-ATU: 17-150 ohms (HF), 20-125 ohms (6 m)
Accessories
-
RigReference ID
3155
MPN
ICOM-IC-000746-PRO

Manuals, diagrams and brochures

ICOM IC-746Pro Instruction Manual.pdf PDF - Unknown size, submitted by RigReference

Upload relevant documents

Reviews & stories

Rating Title Submitted
Fine all-around rig 2 years ago by captike001
operator 9 years ago by richardcouch19
Top Notch 10 years ago by N4NDX
Well Worth the price in performance! 11 years ago by rerun
best value all rounder ! 11 years ago by G4UNB
Great Rig with no issues at all 13 years ago by rerun

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-746 Pro. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-746 Pro is around:

  • USD 405.00 ~ USD 295.00
  • AUD 97.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2022 USD 300.00 New / Mint captike001
2020 USD 450.00 Used / Good Dave
2017 USD 710.00 Used / Good Rodgerzk
2010 USD 989.95 New / Good universal-radio
2005 AUD 1800.00 Used / Good MrBones
