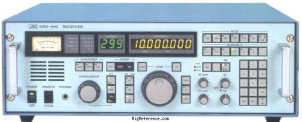

The Japan Radio Company NRD-630 employs cutting-edge digital technologies for exceptional performance and superb ergonomics. The controls are designed for full-time, fatigue-free operation. The NRD-630 covers 90.000 to 29999.999 kHz with 1 Hz display in LSB, USB, AM, CW, and FSK (RTTY) modes. Supplied bandwidths include: 6, 3, 2.7, 1, 0.5 and 0.3 kHz. The built in 300 channel memory stores: frequency, mode, bandwidth, attenuator and AGC parameters. Scan and sweep are supported. Other refinements include: Passband Shift, NB, Lock, Keypad entry, built in speaker, S-Meter (non-illuminated), Squelch, Dimmer and AGC selection. AGC positions include: Off/Slow/Fast/Data. There are numerous User Defined Functions which can be set to the operator's preference. The antenna jack is an N connector. Please note that current production units feature light green front panels. A substantial Instruction Manual with pull-out schematics is included.
The NRD-630 is designed for mounting in a standard 19 inch commercial rack
General characteristics
- HAM bands
- ?
- Frequency stability
- ± 0.2 PPM
- Tuning steps
- 1 / 10 / 100 Hz, 1 / 5 / 9 / 10 / 100 kHz
- Memories
- 300 channels in 1 bank(s)
Receiver
- RX-range
- 0.09-30 MHz
- Modulations
- AM CW USB LSB DSB ISB FSK FAX
- Sensitivity
- 2µV SSB 1.6-30 MHz (10 dB S+N/N)
- Selectivity
- 6.0 / 3.0 / 2.7 / 1.0 / 0.5 / 0.3 kHz
- Filters
- ?
- Receiver system
- Triple Conversion Superheterodyne
- IF-frequencies
- 1st 70.455 MHz
2nd 455 kHz
3rd 17 kHz - Image rejection
- > 70 dB
- Audio output
- 1W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 24V DC or mains
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 480 × 149 × 294 mm (18.90 × 5.87 × 11.57 in)
- Weight
- 10.00 kg (22.1 lbs)
- Form factor
- Base Station
- Manufactured
- Between 2007 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3304
- MPN
- JRC-NRD-000630
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used JRC NRD-630. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the JRC NRD-630 in Good condition is around:
- USD 3,333
These estimates are based on the following prices:
