Kenwood TR-2200

Mobile VHF Transceiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

Find Kenwood TR-2200 rigs and spare parts on eBay

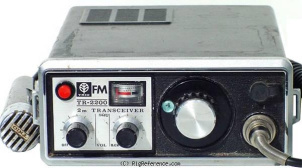

The Kenwood TR-2200 is a mobile VHF transceiver. It covers 144-146 MHz for both receive and transmit. RF output is 1 W. The radio features 1 memory bank with 6 channels. Power requirements are 13.8V DC. Dimensions are 58 × 135 × 181 mm.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: ?
Memories: 6 channels in 1 bank(s)

Receiver

RX-range: 144-146 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: XTAL
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 MHz
Modulations: FM
RF-output: 1 W

Connections

Antenna: -
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: 38 mA
TX: 420 mA

Physical

Dimensions (w×h×d): 135 × 58 × 181 mm (5.31 × 2.28 × 7.13 in)
Weight: 1.70 kg (3.8 lbs) 10 × NiCd and mic included
Form factor: Mobile
Manufactured: Between 1974 and 197x in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3440
MPN: KENWOOD-TR-002200

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Kenwood TR-2200 Instruction Manual PDF - Unknown size, submitted by RigReference

: Upload relevant documents
