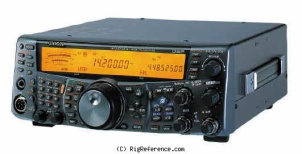

The Kenwood TS-2000X is similar to the Kenwood TS-2000 but has the 1200 MHz option installed and is especially suited for satellite operation. This rig can also be operated via computer or optional RC-2000 control head.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  2m  70cm  23cm  10m
Frequency stability
± 0.5 p.p.m.
Tuning steps
Continuous
Memories
300 channels in 1 bank(s)

Receiver

RX-range
0.03-60 / 118-174 / 220-512/ 1240-1300 MHz
Modulations
AM   FM   N-FM   CW   USB   LSB   FSK
Sensitivity
SSB/CW/FSK (S/N 10 dB): 0.13 µV
AM (S/N 10 dB): 1.3 µV
FM (12 SINAD): 0.18 µV
Selectivity
SSB: 2.2 kHz @ -6 dB / 4.4 kHz @ -60 dB
AM: 6 kHz @ -6 dB / 12 kHz @ -60 dB
FM: 12 kHz @ -6 dB / 25 kHz @ -60 dB
N-FM: 8 kHz @ -6 dB / 20 kHz @ -60 dB
Filters
?
Receiver system
Quadruple/triple/double conversion superheterodyne
IF-frequencies
?
Image rejection
Main: >70 dB Sub: >60 dB
Audio output
1.5 W 8 Ohm at 10% distortion

Transmitter

TX-range
10-160 m + WARC / 6 m / 2 m / 70 cm / 23 cm
Modulations
AM   FM   N-FM   CW   USB   LSB   FSK
RF-output
Max 100/100/100/50/10 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8V DC +/-15%
Current drain RX
Squelched 2.6 A
TX
Max 20.5 A

Physical

Dimensions (w×h×d)
281 × 107 × 371 mm (11.06 × 4.21 × 14.61 in)
Weight
8.20 kg (18.1 lbs)
Form factor
Base Station
Manufactured
Between 2000 and 200x

Other features

Usage
Amateur / Ham radio operators
Features + options
DSP. Built-in 1K2/9K6 TNC. Auto-AT on HF/6 m. DX-Cluster functions.
Accessories
-
RigReference ID
3481
MPN
KENWOOD-TS-002000X

Manuals, diagrams and brochures

Kenwood TS-2000 Serv Man Supplement PDF - Unknown size, submitted by RigReference
Kenwood TS-2000 Serv Man Supplement II PDF - Unknown size, submitted by RigReference
Kenwood TS-2000 Serv Man Supplement III PDF - Unknown size, submitted by RigReference
Kenwood TS-2000 Service Manual PDF - Unknown size, submitted by RigReference
Kenwood TS-2000 User Manual PDF - Unknown size, submitted by RigReference
Kenwood TS-2000 User Manual Dutch PDF - Unknown size, submitted by RigReference

Upload relevant documents

Reviews & stories

Rating Title Submitted
TS-2000X 7 years ago by deactivated user
Rediscover the pleasure of working AM mode again! 8 years ago by rreh917
Not a bad Rig 8 years ago by N8GBU

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TS-2000X. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Kenwood TS-2000X is around:

  • EUR 341.00 ~ EUR 111.00
  • USD 305.00 ~ USD 192.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2010 EUR 2125.00 New / Good thiecom.de
2010 USD 1899.95 New / Good HRO
2010 USD 1900.00 New / Mint rreh917
2010 USD 1200.00 New / Mint N8GBU
2006 EUR 1500.00 New / Mint PF1JM
