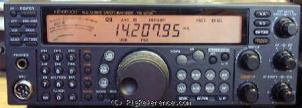

The Kenwood TS-570S is a Desktop HF/VHF Transceiver. It covers 0.5-30 MHz / 50-54 MHz in reception and 10-160 m + WARC / 50-54 MHz in transmission. The maximum RF output is 100W PEP. It operates on a 13.8V DC power supply. Features include DSP. Dimensions are 96 × 270 × 271 mm.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 6m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.5-30 MHz / 50-54 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC / 50-54 MHz
- Modulations
- AM FM CW SSB
- RF-output
- Max 100/100 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 270 × 96 × 271 mm (10.63 × 3.78 × 10.67 in)
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- DSP
- Accessories
- -
- RigReference ID
- 3494
- MPN
- KENWOOD-TS-000570S
Manuals, diagrams and brochures
- Kenwood TS-570D/S/G Instruction Manual PDF - Unknown size, submitted by RigReference
- Kenwood TS-570 Service Manual (A4) PDF - Unknown size, submitted by RigReference
- Upload relevant documents
Reviews & stories
| Rating | Title | Submitted |
|---|---|---|
| Another Great Kenwood | 12 years ago by KA9MOT | |
| Excellent Radio | 12 years ago by k5fs |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TS-570S. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Kenwood TS-570S is around:
- USD 46.00 ~ USD 100.00
These estimates are based on the following prices:
