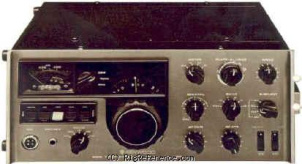

Kenwood TS-900

General characteristics

HAM bands

80m  40m  20m  15m  10m

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

10-80 m + WWV 15.0 MHz

Modulations

CW   SSB   FSK

Sensitivity

0.5 µV (10 dB (S+N)/N)

Selectivity

SSB/FSK: 2.2 kHz (-6 dB), 4.4 kHz (-60 dB)
CW: 0.5 kHz (-6 dB), 1.5 kHz (-60 dB) with optional CW filter

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

?

Image rejection

50 dB

Audio output

?

Transmitter

TX-range

10-80 m + WWV 15.0 MHz

Modulations

CW   SSB   FSK

RF-output

SSB: 300 W (PEP input), CW: 200 W (input), FSK: 100 W (input)

Connections

Antenna

SO-239

Impedance

50 Ω

Other

-

Electrical

Power requirements

Mains

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

320 × 140 × 320 mm (12.60 × 5.51 × 12.60 in)

Weight

12.00 kg (26.5 lbs)

Form factor

Unknown

Manufactured

Between 197x and 197x in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

3514

MPN

KENWOOD-TS-000900
