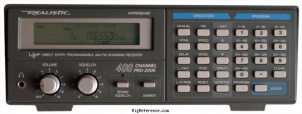

RadioShack / Realistic Pro-2006

General characteristics

HAM bands

6m  2m  1.25m  70cm  33cm  23cm  10m  4m

Frequency stability

?

Tuning steps

5 / 12.5 / 50 kHz

Memories

400 channels in 1 bank(s) @ 26 channels/second

Receiver

RX-range

25-520 / 760-1300 MHz

Modulations

AM   FM   W-FM

Sensitivity

AM (20 dB S/N)
25-1000 MHz: 2 µV
1000-1300 MHz: 5 µV
FM (20 dB S/N)
25-1000 MHz: 0.5 µV
1000-1300 MHz: 3 µV
W-FM (30 dB S/N)
25-1000 MHz: 3 µV
1000-1300 MHz: 10 µV

Selectivity

AM/FM: 18 kHz (-6 dB), 30 kHz (-50 dB)
W-FM: 300 kHz (-6 dB), 600 kHz (-60 dB)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

Internal speaker

Connections

Antenna

BNC

Impedance

50/75Ω

Other

-

Electrical

Power requirements

12V DC or mains

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

220 × 76 × 205 mm (8.66 × 2.99 × 8.07 in)

Weight

2.20 kg (4.9 lbs)

Form factor

Base Station

Manufactured

Between 199x and 199x in Japan (By GRE)

Other features

Usage

Amateur / Ham radio operators

Features + options

Sound squelch.

Accessories

-

RigReference ID

3848

MPN

RADIOSHACK-REALISTIC-PRO-002006

Manuals, diagrams and brochures

Realistic Pro-2006 Instruction manual (Dutch) PDF - Unknown size, submitted by RigReference



Upload relevant documents

Reviews & stories

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used RadioShack / Realistic Pro-2006. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the RadioShack / Realistic Pro-2006 is around:

• EUR 1.00 ~ EUR 1.00
• USD 3.00 ~ USD 1.00

Price History Chart

These estimates are based on the following prices:
