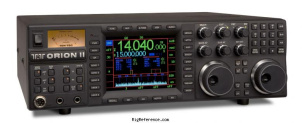

Ten-Tec Orion II (566)

General characteristics

HAM bands

160m  80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  10m

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

10-160 m + WARC and 60 m (5 MHz)

Modulations

AM   FM   CW   SSB   AFSK

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

10-160 m + WARC and 60 m (5 MHz)

Modulations

AM   FM   CW   SSB   AFSK

RF-output

100 W

Connections

Antenna

RCA (Tulip)

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

432 × 133 × 476 mm (17.01 × 5.24 × 18.74 in)

Weight

9.20 kg (20.3 lbs)

Form factor

Base Station

Manufactured

Between 2005 and 200x in USA

Other features

Usage

Amateur / Ham radio operators

Features + options

Dual 32-bit IF-DSP. True diversity reception capability with twin RX. Real-time spectrum display. Built-in keyer. Flash-ROM BIOS.

Accessories

-

RigReference ID

4177

MPN

TEN-TEC-ORION-II-(000566)

Manuals, diagrams and brochures

Ten-Tec 566 Orion II User Manual PDF - 1.36 MB, submitted by Gerd



Upload relevant documents

Reviews & stories

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Ten-Tec Orion II (566). Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Ten-Tec Orion II (566) is around:

• USD 497.00 ~ USD 991.00
• GBP 520.00

Price History Chart

These estimates are based on the following prices:
