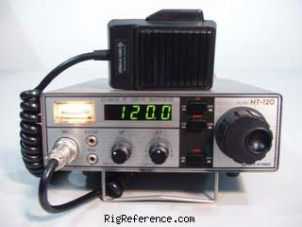

The Tokyo Hy-Power HT-120 is a mobile transceiver. It covers 14-14.5 MHz for both transmit and receive. RF output is SSB: 20 W (PEP), CW: 20 W. Power requirements are 13.8V DC. Current drain is Max 700 mA in receive mode and Max 5 A in transmit mode. Dimensions are 60 × 180 × 250 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 14-14.5 MHz
- Modulations
- CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 14-14.5 MHz
- Modulations
- CW SSB
- RF-output
- SSB: 20 W (PEP), CW: 20 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 700 mA
- TX
- Max 5 A
Physical
- Dimensions (w×h×d)
- 180 × 60 × 250 mm (7.09 × 2.36 × 9.84 in)
- Weight
- 2.60 kg (5.7 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1987 and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 4192
- MPN
- TOKYO-HY-POWER-HT-000120
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
Reviews & stories
| Rating | Title | Submitted |
|---|---|---|
| excellent transceiver HT 120 TOKYO HY POWER | 15 years ago by F6JGH |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Tokyo Hy-Power HT-120. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Tokyo Hy-Power HT-120 is around:
- EUR 10.00
These estimates are based on the following prices:
