Tokyo Hy-Power HT-180

Mobile Shortwave Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

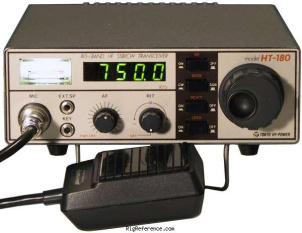

The Tokyo Hy-Power HT-180 is a Mobile Shortwave Transceiver. It covers 3.5-4 MHz for both receive and transmit. RF output is SSB: 20 W (PEP), CW: 20 W. Power requirements are 13.8V DC. Current drain is Max 700 mA in receive and Max 5 A in transmit. Dimensions are 60 × 180 × 250 mm.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 3.5-4 MHz
Modulations: CW SSB
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 3.5-4 MHz
Modulations: CW SSB
RF-output: SSB: 20 W (PEP), CW: 20 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: Max 700 mA
TX: Max 5 A

Physical

Dimensions (w×h×d): 180 × 60 × 250 mm (7.09 × 2.36 × 9.84 in)
Weight: 2.60 kg (5.7 lbs)
Form factor: Mobile
Manufactured: Between 1987 and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 4194
MPN: TOKYO-HY-POWER-HT-000180

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Tokyo Hy-Power HT-180. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Tokyo Hy-Power HT-180 is around:

USD 215 ~ USD 400

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
