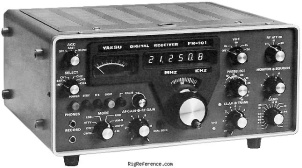

Yaesu FR-101D

Desktop HF/VHF Receiver

Specs Manuals (0) Reviews (2) Prices (0) Compare

Find Yaesu FR-101D rigs and spare parts on eBay

Find the Yaesu FR-101D on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

Please note this model is also referred to as the FR-101SD.

The Yaesu FR-101D is an amateur band receiver with provisions for multimode reception on twenty one 500 kHz amateur and shortwave bands from 160 to 10 meters. Two meters and six meter coverage is available by optional converters. This radio includes a stunning green digital display with analog subdial. Supplied frequency ranges include: 3.5-4, 7-7.5, 14-14.5, 21-21.5, 28-28.5, 28.5-29 MHz. It is designed to match the FL-101 transmitter through easy wiring. The FR-101D will also work with the FT-101/277E transceivers. Operation is from 100/110/117/200/220/234 VAC. Features include: attenuator, crystal calibrator, carry handle noise blanker, AGC OFF/SLOW/FAST, RF gain and squelch. The rear panel has SO239 antenna input and other I/O jacks.

General characteristics

HAM bands: 160m 80m 40m 20m 15m 10m
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 10-160 m
Modulations: N-AM W-AM FM CW SSB RTTY
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: No built-in speaker

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC or mains
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): 342 × 152 × 305 mm (13.46 × 5.98 × 12.01 in)
Weight: 14.00 kg (30.9 lbs)
Form factor: Base Station
Manufactured: Between 19xx and 19xx in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 4212
MPN: YAESU-FR-000101D
