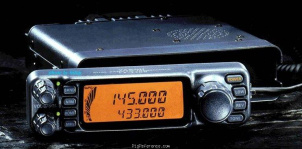

Yaesu FT-7100M

General characteristics

HAM bands

2m  70cm

Frequency stability

?

Tuning steps

?

Memories

262 channels in 1 bank(s)

Receiver

RX-range

108-180 / 320-480 / 810-1000 MHz *

Modulations

AM   FM

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

144-146 / 430-440 MHz (Europe)
144-148 / 430-450MHz (USA)

Modulations

FM

RF-output

High: 50/35 W, Mid1: 20/20 W, Mid2: 10/10 W, Low: 5/5 W

Connections

Antenna

SO-239

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

Max 0.5 A

TX

Max 11.5 A

Physical

Dimensions (w×h×d)

140 × 38 × 166 mm (5.51 × 1.50 × 6.54 in)

Weight

1,000 gr (2.2 lbs)

Form factor

Mobile

Manufactured

Between 2001 and 200x in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

Detachable head. CTCSS & DCS ARTS. 9K6 packet ready. Twin RX.

Accessories

-

RigReference ID

4324

MPN

YAESU-FT-007100M

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-7100M. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Yaesu FT-7100M in Good condition is around:

• EUR 389

Price History Chart

These estimates are based on the following prices:
