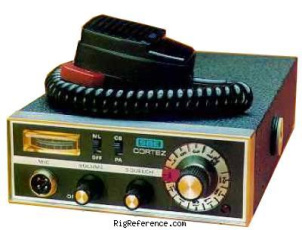

The SBE Cortez is a mobile transceiver. It covers 26.965-27.225 MHz for both receive and transmit. The RF output is 3.5 W. It features AM modulation and has 1 memory bank with 23 channels. Dimensions are 53 × 150 × 220 mm.
General characteristics
- HAM bands
- 11m (CB)
- Frequency stability
- ?
- Tuning steps
- Channelized
- Memories
- 23 channels in 1 bank(s)
Receiver
- RX-range
- 26.965-27.225 MHz
- Modulations
- -
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 26.965-27.225 MHz
- Modulations
- -
- RF-output
- 3.5 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- ?
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 150 × 53 × 220 mm (5.91 × 2.09 × 8.66 in)
- Weight
- 1.90 kg (4.2 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1975 and 197x
Other features
- Usage
- Citizen Band (27Mc)
- Features + options
- AM
- Accessories
- -
- RigReference ID
- 4925
- MPN
- SBE-CORTEZ
Manuals, diagrams and brochures
-
No documents available for this particular model.
