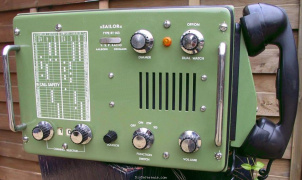

Sailor RT143

Mobile VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Sailor RT143 rigs and spare parts on eBay

The Sailor RT143 is a Mobile VHF Transceiver. It covers All International Maritime VHF channels for both reception and transmission with an RF output of 25 W. The radio operates on 12/24 V DC and supports Simplex and duplex operation. Dimensions are 220 × 320 × 195 mm. The RT143 weighs 12 kg. Current drain is 220 mA in receive mode and 4 A max in transmit mode.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: All International Maritime VHF channels
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: All International Maritime VHF channels
Modulations: FM
RF-output: 25 W

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: 12/24 V DC
Current drain RX: 220 mA
TX: 4 A max

Physical

Dimensions (w×h×d): 320 × 220 × 195 mm (12.60 × 8.66 × 7.68 in)
Weight: 12.00 kg (26.5 lbs)
Form factor: Mobile
Manufactured: Between 1973 and 197x in Denmark

Other features

Usage: Marine / Navy
Features + options: Simplex and duplex operation supported
Accessories: -
RigReference ID: 5323
MPN: SAILOR-RT000143
