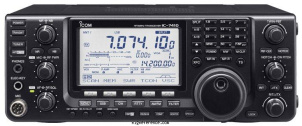

ICOM IC-7410

Desktop HF/VHF Transceiver

Specs Manuals (2) Reviews (6) Prices (9) Compare

The Icom IC-7410 is the successor to the ICOM IC-7400 and ICOM IC-746 Pro providing professional performance in the 160 to 6 meter amateur bands. This HF rig employs the same high grade DSP unit and double conversion super-heterodyne system developed from the latest technology used in the IC-7600, IC-7700 and IC-7800 series. It features a 15kHz roofing filter. In addition, when used with the optional FL-430 and FL-431 filters, narrow mode signals are protected from adjacent inband signals. The 3kHz first IF filter is especially effective in the CW and SSB modes. It utilizes Icom's proven IF-DSP technology. Like the IC-746Pro, it features a sharp black and white LCD. In fact, the IC-7410 display is actually 10mm wider than the ICOM IC-746 Pro display. It features a superior general coverage receiver covering 30 kHz to 60 MHz with +30dbm 3rd order intercept point receive performance and ±0.5 p.p.m. stability. There is a built-in bandscope function, and Baudot RTTY capability. Other refinements include: ±9.999 kHz RIT, BPF, quick split function, band edge beep and CW keyer (6-48 WPM). A large chassis heatsink is employed. There is a built-in tuner. Power is 100 watts. There are both CI-V and USB ports on the rear panel. Original price in 2010: USD 1995.00.

General characteristics

HAM bands: 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 10m
Frequency stability: ± 0.5 p.p.m.
Tuning steps: ?
Memories: 101 channels in 1 bank(s)

Receiver

RX-range: 30 kHz - 60 MHz
Modulations: AM FM CW USB LSB RTTY
Sensitivity: SSB/CW (10 dB S/N)
1.8-29.999 MHz : -16dBμ (0.16 μV) (1 preamplifier ON)
50 MHz band :-18dBμ (0.13 μV) (2 preamp ON)
AM (10dB S/N)
0.5-1.8 MHz : +22 dBμ (12.6 μV) (1 preamplifier ON)
1.8-29.999 MHz : +6 dBμ (2.0 μV) (1 preamplifier ON)
50 MHz band : +4 dBμ (1.6 μV) (2 preamp ON)
FM (12dB SINAD)
28.0-29.7 MHz :-6 dBμ (0.50 μV) (1 preamplifier ON)
50 MHz band :-10 dBμ (0.32 μV)
Selectivity: SSB (BW = 2.4kHz)
Above 2.4kHz /-6dB
Below 3.4kHz /-40dB
CW (BW = 500Hz)
Above 500Hz /-6dB
Below 700Hz /-40dB
RTTY (BW = 350Hz)
Above 500Hz /-6dB
Below 800Hz /-40dB
AM (BW = 6kHz)
Above 6.0kHz /-6dB
Below 10kHz /-40dB
FM (BW = 15kHz)
12.0kHz or higher /-6dB
Below 22kHz /-40dB
Filters: 15 kHz (standard) 6 / 3 kHz (optional) (max. three filters total)
Receiver system: Double conversion + DSP
IF-frequencies: 1st: 64.455 MHz
2nd: 36 kHz
Image rejection: > 70 dB
Audio output: 2.0W (8Ω, 10% distortion)

Transmitter

TX-range: 160-10 m + WARC / 6 m
Modulations: AM FM CW USB LSB RTTY
RF-output: 100 W (50 W for Japanese version)

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: 3 A
TX: 23 A max.

Physical

Dimensions (w×h×d): 315 × 116 × 343 mm (12.40 × 4.57 × 13.50 in) excluding protrusions
Weight: 10.20 kg (22.5 lbs) excluding optional modules
Form factor: Base Station
Manufactured: Between 2011 and 201x in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: 36 kHz 32-bit IF DSP (the same class as used in the IC-7600)
Built-in Auto-AT
Built-in RTTY demodulator
Integrated speech synthesizer
+30 dBm IP3 on HF
USB interface for PC control and voice output
“Band edge beep alarm” helps users avoid off-band operation
Large B/W LCD screen, ergonomically designed controls
Accessories: -
RigReference ID: 5470
MPN: ICOM-IC-007410

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: ICOM IC-7410 High resolution image (4410 x 1824 pixels, 3.9MB) JPG - Unknown size, submitted by RigReference
: FCC test report (ICOM IC-7410) PDF - Unknown size, submitted by RigReference

: Upload relevant documents

Reviews

Rating	Title	Submitted
	One of the best HF transceivers I've ever used	1 year ago by divrens
	incredible performance vs dollar	7 years ago by brent redenbach
	IC-7410 - Review after more than 1 year	10 years ago by dg1un
	Mint ICOM IC-756PRO III	13 years ago by james2e0rum
	Excellent Rig for the price	13 years ago by kb8hjh
	Excellent for the money	13 years ago by W8GTX

View all ICOM IC-7410 reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-7410. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the ICOM IC-7410 in Good condition is around:

GBP 600
EUR 1,278 ~ EUR 1,375
USD 1,335 ~ USD 1,391
CAD 1,504

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2019	GBP 600.00	Used / Good	John G8CCD
2014	EUR 1640.00	New / Mint	dg1un
2014	EUR 1899.00	New / Mint	divrens
2013	USD 1700.00	New / Mint	universal-radio
2013	EUR 1759.00	New / Mint	thiecom.de
