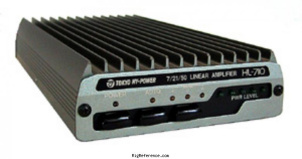

The Tokyo Hy-Power HL-750 was made to match the Tokyo Hy-Power HT-750 and turns the set into a portable mini-station. It features automatic band switching when coupled to the Tokyo Hy-Power HT-750. Finals: 2 transistors in Class AB push-pull (2SC1946A).
Note: Illegal to import/sell HL-710/750 in US because of then-existing FCC restrictions on amps operable 24-35MHz (either amp would boost 10m input signal with band set to 15m).
General characteristics
- HAM bands
- 40m 15m 6m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Transmitter
- TX-range
- 40 / 15 / 6 m
- Modulations
- CW SSB
- RF-output
- 50 W @ 3 W (40/15m) / 6 W (6m) input
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC
- Current drain RX
- 10 A max.
- TX
- ?
Physical
- Dimensions (w×h×d)
- 150 × 47 × 184 mm (5.91 × 1.85 × 7.24 in)
- Weight
- 1.30 kg (2.9 lbs)
- Form factor
- Portable
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Options:
HRC-60 External remote controller
HBK-110F Mobile mount bracket w/cooling fan - Accessories
- -
- RigReference ID
- 5584
- MPN
- TOKYO-HY-POWER-HL-000750
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Tokyo Hy-Power HL-750. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Linear Amplifier equipment, the estimated value of the Tokyo Hy-Power HL-750 is around:
- USD 496 ~ USD 920
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
