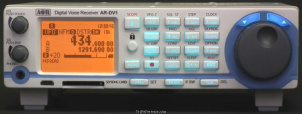

The AOR AR-DV1 is a communications receiver covering 0.1-1300 MHz. It features direct, double or triple conversion depending on selected range with a 1st IF frequency of 1.705 GHz. The receiver has 40 memory banks and 2000 memory channels. It supports DMR, dPMR, D-Star, APCO-25, NXDN, Yaesu Digital (System Fusion), Alinco Digital, Digital-CR, and AOR G4GUO digital modes. Audio output is provided through a 1 W internal speaker and 3.5mm jacks. The receiver requires 10.8-16 V DC power and draws 750 mA in receive mode. Dimensions are 50 × 178 × 215 mm and it weighs 1.5 kg.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 2m 1.25m 70cm 33cm 23cm 10m 4m
- Frequency stability
- ≤ 2.5 p.p.m. after 5 min. warm-up
- Tuning steps
- ?
- Memories
- 2000 channels in 40 bank(s)
Receiver
- RX-range
- 0.1-1300 MHz
- Modulations
- AM AM-sync FM CW SSB USB DMR D-STAR P25 APCO-25 GMSK
- Sensitivity
- 530 kHz - 18 MHz: 0.71 µV (12 dB SINAD)
18 - 1300 MHz: 0.32 µV (12 dB SINAD) - Selectivity
- ?
- Filters
- ?
- Receiver system
- Direct, double or triple conversion depending on selected range
- IF-frequencies
- 1st: 1.705 GHz
- Image rejection
- ?
- Audio output
- 1 W internal speaker, 3.5mm jacks
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 10.8-16 V DC
- Current drain RX
- 750 mA
- TX
- -
Physical
- Dimensions (w×h×d)
- 178 × 50 × 215 mm (7.01 × 1.97 × 8.46 in)
- Weight
- 1.50 kg (3.3 lbs)
- Form factor
- Base Station
- Manufactured
- Between 2014 and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Micro-USB for receiver control with command list
Support for the following digital modes:
- DMR (Digital Mobile Radio)
- dPMR (Digital Private Mobile Radio)
- D-Star
- APCO-25
- NXDN
- Yaesu Digital (System Fusion)
- Alinco Digital
- Digital-CR
- AOR G4GUO (as used in ARD9000/9800) - Accessories
- -
- RigReference ID
- 6083
- MPN
- AOR-AR-DV000001
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used AOR AR-DV1. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the AOR AR-DV1 in Good condition is around:
- USD 627
- EUR 1,703
These estimates are based on the following prices:
