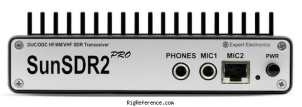

The Expert Electronics SunSDR2 PRO is a direct sampling SDR transceiver covering all HF bands plus 50 MHz and 144 MHz VHF bands. Remote control over DSL or mobile 3G and 4G connections provide a full SDR experience using the Expert Remote System.
Price when new: EUR 1840.- (with WLAN)
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 2m 10m
- Frequency stability
- +/- 2.5 p.p.m.
- Tuning steps
- Software defined
- Memories
- 10000 channels in 10000 bank(s)
Receiver
- RX-range
- 0.01-65 / 95-148 MHz (300 MHz with oversampling)
- Modulations
- AM AM-sync N-FM W-FM CW USB LSB DSB Multiple (Software defined)
- Sensitivity
- 70 nV (with preamp)
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Direct Down Conversion, SDR
- IF-frequencies
- Software defined
- Image rejection
- ≥ 90 dB
- Audio output
- Through computer
Transmitter
- TX-range
- 0.01-65 / 95-148 MHz (300 MHz with oversampling)
- Modulations
- AM AM-sync N-FM W-FM CW USB LSB DSB
- RF-output
- HF: 15 W, VHF: 8 W
Connections
- Antenna
- SMA
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 10 to 15 V DC
- Current drain RX
- ?
- TX
- 3A max
Physical
- Dimensions (w×h×d)
- 165 × 100 × 35 mm (6.50 × 3.94 × 1.38 in)
- Weight
- 500 gr (1.1 lbs)
- Form factor
- Headless
- Manufactured
- Between 2017 and 20xx in Russia
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Bandscope width: 20 kHz to 80 MHz
WLAN optional, 100 Mpbs
DAC converter: 14 bit 640 MSPS
8 programmable transistor switches for external equipment
Modular microphone input for Yaesu MH-31 - Accessories
- -
- RigReference ID
- 6148
- MPN
- EXPERT-ELECTRONICS-SUNSDR000002-PRO
