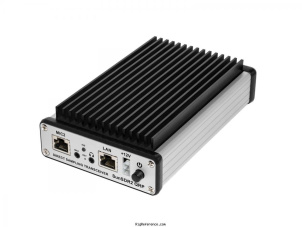

Expert Electronics SunSDR2 QRP

General characteristics

HAM bands

160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  10m

Frequency stability

+/- 2.5 p.p.m.

Tuning steps

Software defined

Memories

10000 channels in 10000 bank(s)

Receiver

RX-range

0.1 to 55 MHz

Modulations

AM   AM-sync   N-FM   W-FM   CW   USB   LSB   Multiple (Software defined)

Sensitivity

0.1 µV

Selectivity

?

Filters

?

Receiver system

Direct Down Conversion, SDR

IF-frequencies

Software defined

Image rejection

?

Audio output

Through computer

Transmitter

TX-range

?

Modulations

AM   AM-sync   N-FM   W-FM   CW   USB   LSB

RF-output

5 W

Connections

Antenna

SMA

Impedance

50Ω

Other

-

Electrical

Power requirements

10 to 15 V DC

Current drain RX

?

TX

3A max

Physical

Dimensions (w×h×d)

165 × 100 × 35 mm (6.50 × 3.94 × 1.38 in)

Weight

500 gr (1.1 lbs)

Form factor

Headless

Manufactured

Between 2017 and 20xx in Russia

Other features

Usage

Amateur / Ham radio operators

Features + options

Spectrum scope bandwidth up to 60 MHz
16-bit ADC

Accessories

-

RigReference ID

6144

MPN

EXPERT-ELECTRONICS-SUNSDR000002-QRP

Manuals, diagrams and brochures

No manuals yet for the Expert Electronics SunSDR2 QRP. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Expert Electronics SunSDR2 QRP. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Expert Electronics SunSDR2 QRP is around:

• USD 187 ~ USD 347

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
