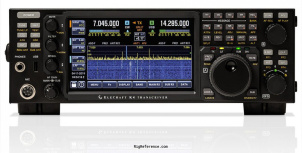

Basic Elecraft K4 transceiver provides 160-6 m, all-mode coverage; 100 W output; five receive RF sources; and wideband dual watch, allowing the main and sub receivers to be set for the same or different bands.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 2m 70cm 10m
- Frequency stability
- ±0.25 p.p.m. (TCXO)
- Tuning steps
- 0.001 kHz
- Memories
- 144 channels in 1 bank(s)
Receiver
- RX-range
- 0.1-54 MHz (2 m/70 cm optional)
- Modulations
- AM FM CW USB LSB RTTY Digital (other) PSK31/63
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Direct-sampling SDR
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC / 6 m (2m / 70cm optional)
- Modulations
- AM FM CW USB LSB RTTY Digital (other) PSK31/63
- RF-output
- 0.1-10 / 0.1-100
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 12-15V DC
- Current drain RX
- 2 A
- TX
- 23 A max
Physical
- Dimensions (w×h×d)
- 343 × 114 × 254 mm (13.50 × 4.49 × 10.00 in)
- Weight
- 4.54 kg (10.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 2019 and 20xx in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Modular hybrid design for easy upgrade and expansion
DSP 7" color touch
display
HDMI video output
Ethernet jack
Remote control
Single or dual panadapter
USB-jacks
RS-232C
Transverter I/O
Iambic keyer
Twin RX
Real-time clock
Built-in help system
Linux-based computing module - Accessories
- -
- RigReference ID
- 6434
- MPN
- ELECRAFT-K000004
Manuals, diagrams and brochures
- Elecraft K4 Brochure PDF - 4.71 MB, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Elecraft K4. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Elecraft K4 is around:
- USD 157 ~ USD 291
This estimate is based on similar equipment and may not reflect the exact value of this model.
