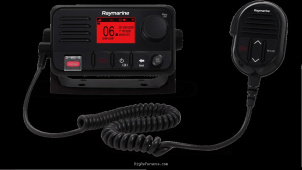

The Raymarine RAY53 is a mobile VHF marine transceiver. It covers 156.050-163.275 / 155.500-161.425 MHz for receive and 156.000-157.425 / 155.500-161.425 MHz for transmit with channelized tuning steps. It features a double conversion superheterodyne receiver system with 70 dB image rejection and an audio output of 2.5 W. The RAY53 has one memory bank with 72 channels, IPx6 & IPx7 rating, GPS/GLONASS/Beidou, and NMEA0183/NMEA2000 compatibility. It requires 9-16 V DC power and draws 600 mA in receive mode and 6 A max in transmit mode.
General characteristics
- HAM bands
- None
- Frequency stability
- ± 1.5 p.p.m.
- Tuning steps
- Channelized
- Memories
- 72 channels in 1 bank(s)
Receiver
- RX-range
- 156.050-163.275 / 155.500-161.425 MHz
- Modulations
- FM
- Sensitivity
- Better than 1 µV EMF @ 20dB SINAD
Distant: 119dBm (0,25 µV) @ 12dB SINAD
Local: 110dBm (0,7 µV) @ 12dB SINAD - Selectivity
- 12.5 kHz
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- 70 dB
- Audio output
- 2.5 W
Transmitter
- TX-range
- 156.000-157.425 / 155.500-161.425 MHz
- Modulations
- FM
- RF-output
- 1 / 25 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 9-16 V DC
- Current drain RX
- 600 mA
- TX
- 6 A max
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 2018 and 20xx in UK
Other features
- Usage
- Marine / Navy
- Features + options
- IPx6 & IPx7
GPS/GLONASS/Beidou
NMEA0183/NMEA2000 - Accessories
- -
- RigReference ID
- 6623
- MPN
- RAYMARINE-RAY000053
