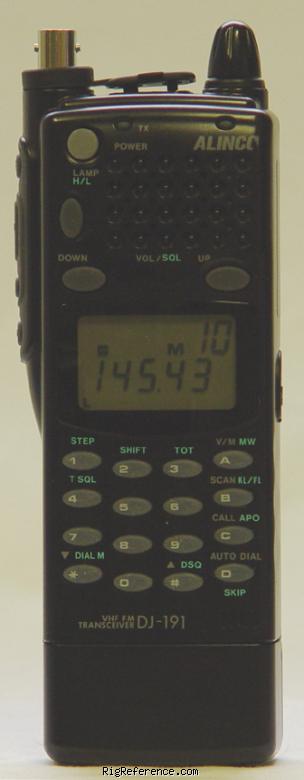

The Alinco DJ-191T 2 Meter HT combines a slim-line design with the most wanted features. The DJ-191T has: large alpha display, 5 watt output, 40 memories plus call channel, 9 autodialer memories, battery saver function, cable cloning function, direct frequency entry, auto power off with tone burst, direct keypad frequency entry, monitor and low power transmit keys and time out timer. The DJ-191T also has extended receive from 135 to 174 MHz. The CTCSS encoder is built in. Comes with the wall charger, NiCad battery pack, BNC flexible rubber duck antenna, belt clip and hand strap.
The Alinco DJ-191T is similar to the Alinco DJ-190T, but the later has no keypad.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 40 channels in 1 bank(s)
Receiver
- RX-range
- 135-174 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 MHz
- Modulations
- FM
- RF-output
- 1.5-5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 4.8-13.8V DC
- Current drain RX
- 24 mA squelched
- TX
- Max 1.5 A
Physical
- Dimensions (w×h×d)
- 57 × 151 × 27 mm (2.24 × 5.94 × 1.06 in)
- Weight
- 300 gr (10.6 oz)
- Form factor
- Handheld
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2243
- MPN
- ALINCO-DJ-000191T
Manuals, diagrams and brochures
- Alinco DJ-191/491 Instruction manual PDF - Unknown size, submitted by RigReference
- Alinco DJ-191 Service manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DJ-191T. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Alinco DJ-191T is around:
- USD 248.00 ~ USD 5.00
