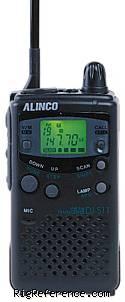

The Alinco DJ-S11T is a handheld VHF transceiver. It covers 144-148 MHz for both receive and transmit. The RF output is selectable between High: 350 mW and Low: 50 mW. It features 1 memory bank with 20 channels. Power requirements are 3.6-4.5V DC (3R6/AA). Dimensions are 102 × 55 × 28 mm. Current drain is 33 mA squelched and 260 mA transmitting.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- 5 / 10 / 12.5 / 15 / 20 / 25 kHz
- Memories
- 20 channels in 1 bank(s)
Receiver
- RX-range
- 144-148 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 MHz
- Modulations
- FM
- RF-output
- High: 350 mW, Low: 50 mW
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 3.6-4.5V DC (3R6/AA)
- Current drain RX
- 33 mA squelched
- TX
- 260 mA
Physical
- Dimensions (w×h×d)
- 55 × 102 × 28 mm (2.17 × 4.02 × 1.10 in)
- Weight
- 185 gr (6.5 oz)
- Form factor
- Handheld
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2276
- MPN
- ALINCO-DJ-S000011T
Manuals, diagrams and brochures
- Alinco DJ-S11 Instruction manual PDF - Unknown size, submitted by RigReference
- Alinco DJ-S11/41 Service manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DJ-S11T. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Alinco DJ-S11T in Good condition is around:
- USD 65
These estimates are based on the following prices:
