Alinco DJ-S41T

Handheld UHF Transceiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

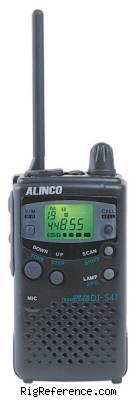

The Alinco DJ-S41T is a handheld UHF transceiver. It covers 425-450 MHz for receive and 438-450 MHz for transmit. The RF output is selectable between High: 350 mW and Low: 50 mW. It features 1 memory bank with 20 channels. Power requirements are 3R6/AA or 3.6-4.5V DC. Dimensions are 102 × 55 × 28 mm. Current drain is 33 mA squelched and 260 mA during transmit.

General characteristics

HAM bands: 70cm
Frequency stability: ?
Tuning steps: ?
Memories: 20 channels in 1 bank(s)

Receiver

RX-range: 425-450 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 438-450 MHz
Modulations: FM
RF-output: High: 350 mW, Low: 50 mW

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: 3R6/AA or 3.6-4.5V DC
Current drain RX: 33 mA squelched
TX: 260 mA

Physical

Dimensions (w×h×d): 55 × 102 × 28 mm (2.17 × 4.02 × 1.10 in)
Weight: 185 gr (6.5 oz)
Form factor: Handheld
Manufactured: Between 19xx and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 2281
MPN: ALINCO-DJ-S000041T

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Alinco DJ-S41/EC10 Instruction manual PDF - Unknown size, submitted by RigReference

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DJ-S41T. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Alinco DJ-S41T is around:

USD 210 ~ USD 390

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
