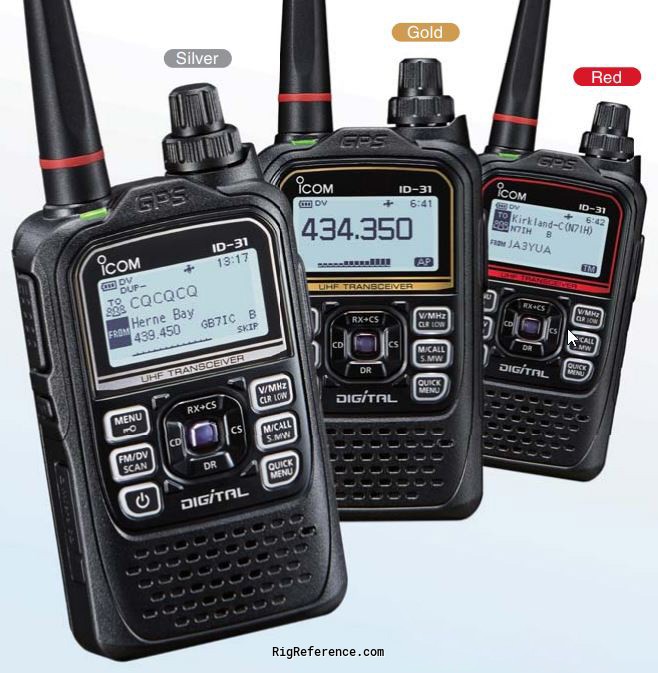

ICOM ID-31E Plus Handheld UHF Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Follow up to the ICOM ID-31E, which was introduced in 2011. This 440 MHz HT also supports conventional FM communication, is IPX7 waterproof and features a built-in GPS receiver.

Frequency range

RX-range
400-479 MHz
TX-range
430-440 MHz
HAM bands
70cm
Stability
± 2.5 p.p.m.
Tuning steps
5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 125 / 200 kHz
Filters
-

Receiver

Modulations
AM   FM   N-FM   D-STAR   GMSK   DV
Sensitivity
FM / N-FM: 0.18 µV (12 dB SINAD)
DV: 0.28 µV (1% BER)
Selectivity
FM: 55 dB
N-FM / DV: 50 dB
Receiver system
Double conversion superheterodyne
IF-frequencies
46.35 MHz / 450khz
Image rejection
-
Audio output
400 mW

Transmitter

Modulations
FM   N-FM   D-STAR   GMSK   DV
RF-Output
5 / 2.5 / 1 / 0.1 W

Connections

Antenna
SMA
Impedance
50Ω

Electrical

Power requirements
5.5-7.4 V DC (Alkaline or battery pack)10-16 V DC external
Current drain RX
200-450 mA
TX
2.5 A max

Physical

Dimensions (w×h×d)
58 × 95 × 26 mm (2.28 × 3.74 × 1.02 in)
Weight
220 gr (7.8 oz) with BP-271 and antenna
Form factor
Handheld
Manufactured
Between 2018 and 20xx in Japan
MPN

Other features

Memories
1252 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
D-Star concept
Built-in GPS
CTCSS / DTCS
Micro SD card slot
128×96 dot-matrix display
IPX7 waterproof
