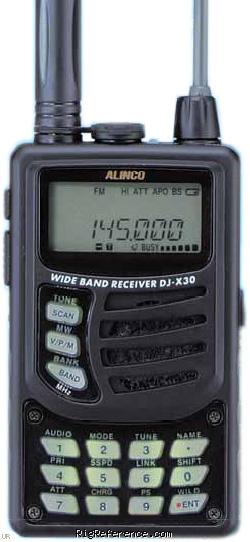

The Alinco DJ-X30 wideband receiver covers 100 kHz to 1299.995 MHz (less cellular) in AM, FM wide and FM narrow modes. Imagine the ability to monitor short wave signals with this world-class performer. The world is at your fingertips, from aircraft or business communications to broadcast or monitoring the ham bands. Small in size but big in features, this pocket size receiver offers a selectable keyboard system so everyone from beginner to experienced operators can enjoy its many advanced features. You can choose whether or not you want the keypad mounted on the radio! A menu of selectable parameter settings enable you to customize the radio to suit your own individual monitoring preferences. The easy to use design makes it simple to program the frequencies you want and those you wish to skip during the scans. You can also activate/deactivate the memory skip function on a temporary basis so you don't have to reprogram the skip setting in the memory mode every time you want to scan more frequencies. The great audio quality makes it easy to catch all the action on fire, public safety, traffic and many other frequencies. You can also use it to enjoy listening to news or your favorite music on broadcast AM, FM and TV stations! The DJ-X30T comes with belt clip, hand strap, face panel and fleixible SMA antenna.

The Alinco DJ-X30K model is the same as above, but without the 816-902 MHz cellular gap and can be purchased via government or qualifying commercial purchase order or for export only.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?
Memories
1000 channels in 10 bank(s)

Receiver

RX-range
0.1-1300 MHz (less cellular)
Modulations
AM   FM   W-FM
Sensitivity
AM (10 dB S/N)
0.1-50 MHz: 0.89 µV
50-1300 MHz: 0.5 µV
FM (12 dB SINAD)
30-470 MHz: 0.17 µV
470-1300 MHz: 0.45 µV
W-FM (12 dB SINAD)
76-470 MHz: 0.5 µV
470-1300 MHz: 0.5 µV
Selectivity
AM/FM: 12 kHz (-6 dB), 35 kHz (-60 dB)
W-FM: 130 kHz (-6 dB), 300 kHz (-60 dB)
Filters
?
Receiver system
AM/FM: Triple conversion W-FM: Double conversion superheterodyne
IF-frequencies
1st: 243.95 MHz
2nd: 39.15 MHz (AM/FM), 10.7 MHz (W-FM)
3rd: 450 kHz (AM/FM)
Image rejection
?
Audio output
?

Connections

Antenna
SMA
Impedance
50 Ω
Other
-

Electrical

Power requirements
2.4-3V DC (2R6/AA) or 5.4-6V DC external
Current drain RX
26-140 mA
TX
-

Physical

Dimensions (w×h×d)
58 × 99 × 32 mm (2.28 × 3.90 × 1.26 in)
Weight
220 gr (7.8 oz) with EBP57
Form factor
Handheld
Manufactured
Between 2007 and 200x

Other features

Usage
Amateur / Ham radio operators
Features + options
CTCSS
Alpha tags
Spectrum-inversion de-scrambler
PC-programmable
Selectable keyboard system
Accessories
-
RigReference ID
2300
MPN
ALINCO-DJ-X000030-E/T/K

Manuals, diagrams and brochures

Alinco DJ-X30 Instruction manual PDF - Unknown size, submitted by RigReference
Alinco DJ-X30 Service manual PDF - Unknown size, submitted by RigReference

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DJ-X30 E/T/K. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Alinco DJ-X30 E/T/K is around:

  • EUR 69.00
  • AUD 90.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2022 EUR 70.00 Used / Mint SWL_de
2019 AUD 100.00 Used / Good Brett Robson
2019 AUD 100.00 Used / Good Brett Robson
