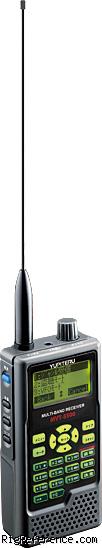

Yupiteru MVT-5500

Handheld HF/VHF/UHF Scanner / receiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The MVT-5500 is the simple version of the Yupiteru MVT-7500. Where the MVT-7500 has dual-VFO, the 5500 has only one.

Both the MVT-5500 and the MVT-7500 are targeted at the Japanese market. Rumors suggest that coverage is not continuous. Some 'private' Japanese frequencies are blocked and it is uncertain if full coverage can be restored. Also, English manuals are not available at time of writing (Aug. 2009)

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: 1 / 5 / 6.25 / 8 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 125 / 150 / 200 / 500 / 1000 kHz
Memories: 2000 channels in 50 bank(s) @ 110 channels/second

Receiver

RX-range: 0.1-1300 MHz
Modulations: AM FM W-FM
Sensitivity: FM (12dB SINAD)
30 ~ 470MHz -12dBμ
470 ~ 830MHz -9dBμ
830 ~ 1000MHz -4dBμ
1000 ~ 1300MHz 0dBμ
W-FM (12dB SINAD)
30 ~ 470MHz -3dBμ
470 ~ 830MHz 0dBμ
AM (10dB S / N)
0.53 ~ 2MHz -3dBμ
2 ~ 30MHz -10dBμ
30 ~ 470MHz -6dBμ
Selectivity: AM / FM
15kHz or more -6dB
Below 30kHz -40dB
W-FM
More than 180kHz -3dB
Below 470kHz -30dB
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: 90 mW

Connections

Antenna: SMA
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 3×AA or 12V DC adaptor
Current drain RX: 115 mW typical
TX: -

Physical

Dimensions (w×h×d): 60 × 120 × 30 mm (2.36 × 4.72 × 1.18 in)
Weight: 230 gr (8.1 oz) incl. battery and belt clip
Form factor: Handheld
Manufactured: Between 2007 and 20xx

Other features

Usage: Amateur / Ham radio operators
Features + options: CTCSS / DCS
1541 pre-programmed frequencies
De-scrambler
Frequency counter / bug finder
Accessories: -
RigReference ID: 4510
MPN: YUPITERU-MVT-005500
