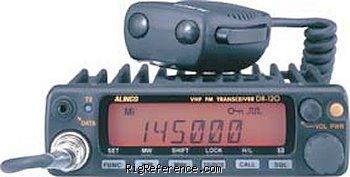

The Alinco DR-120H is a Mobile VHF Transceiver. It covers 144-146 MHz for both receive and transmit. The RF output power settings are High: 50 W, Medium: 10 W, Low: 5 W. Image rejection is 60 dB. The radio requires 13.8V DC and draws 0.6 A in receive mode and a maximum of 11 A in transmit mode. Dimensions are 40 × 140 × 174 mm. It features CTCSS/DCS and has an optional 10F3 digital voice (EJ-47U).
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 144-146 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- 60 dB
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- FM
- RF-output
- High: 50 W, Medium: 10 W, Low: 5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 0.6 A
- TX
- Max 11 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 174 mm (5.51 × 1.57 × 6.85 in)
- Weight
- 1,000 gr (2.2 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2003 and 200x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS/DCS. 10F3 digital voice option (EJ-47U)
- Accessories
- -
- RigReference ID
- 2310
- MPN
- ALINCO-DR-000120H
