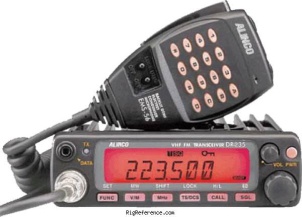

Alinco DR-235T Mobile VHF Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Frequency range

RX-range
216-278 MHz (after modification: RX/TX 200-299.995 MHz depending on VCO alignment)
TX-range
222-225 MHz
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
FM
Sensitivity
-
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
FM
RF-Output
High: 25 W, Medium: 10 W, Low: 5 W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
13.8V DC
Current drain RX
Max 600 mA
TX
Max 8 A

Physical

Dimensions (w×h×d)
142 × 40 × 174 mm (5.59 × 1.57 × 6.85 in)
Weight
1,000 gr (2.2 lbs)
Form factor
Mobile
Manufactured
Between 2001 and 200x in Japan
MPN

Other features

Memories
101 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
CTCSS, DCS and DTMF. 1K2/9K6 TNC option. Theft alarm Digital voice board option (requires at least two similarly equipped radios) PLL: M64076GP (IC501)
