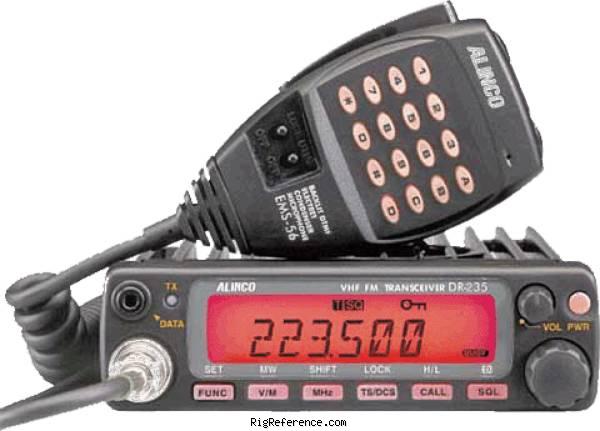

Alinco DR-235T

Mobile VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Alinco DR-235T is a Mobile VHF Transceiver. It covers 216-278 MHz (after modification: RX/TX 200-299.995 MHz depending on VCO alignment) in the frequency range. The transmitter operates from 222-225 MHz. RF output power is selectable as High: 25 W, Medium: 10 W, Low: 5 W. It features CTCSS, DCS and DTMF. It has 1 memory bank with 101 memory channels. The DR-235T requires 13.8V DC power and draws a maximum of 600 mA in receive and 8 A in transmit. Dimensions are 40 × 142 × 174 mm.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: ?
Memories: 101 channels in 1 bank(s)

Receiver

RX-range: 216-278 MHz (after modification: RX/TX 200-299.995 MHz depending on VCO alignment)
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 222-225 MHz
Modulations: FM
RF-output: High: 25 W, Medium: 10 W, Low: 5 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: Max 600 mA
TX: Max 8 A

Physical

Dimensions (w×h×d): 142 × 40 × 174 mm (5.59 × 1.57 × 6.85 in)
Weight: 1,000 gr (2.2 lbs)
Form factor: Mobile
Manufactured: Between 2001 and 200x in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: CTCSS, DCS and DTMF. 1K2/9K6 TNC option. Theft alarm Digital voice board option (requires at least two similarly equipped radios) PLL: M64076GP (IC501)
Accessories: -
RigReference ID: 2319
MPN: ALINCO-DR-000235T
