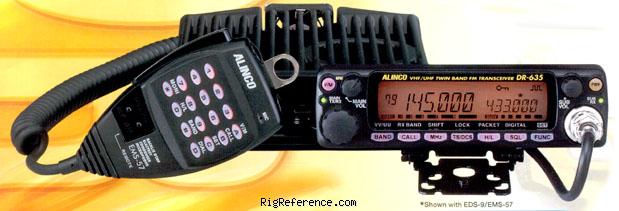

The Alinco DR-635T is a mobile VHF/UHF transceiver. It covers 87.5-108 / 108-174 / 335-480 MHz for reception and 144-148 / 430-450 MHz for transmission. The receiver system is a double conversion superheterodyne with IF frequencies of 1st: 21.7 MHz / 450 kHz, 2nd: 45.1 MHz / 455 kHz. RF output power is High: 50/35 W, Medium: 20/20 W, Low: 5/5 W. The audio output is 2W into 8 ohm @ 10% THD. It features 1 memory bank with 202 channels. Dimensions are 40 × 140 × 185 mm. Weight is 1 kg. Current drain is 500-700 mA (RX) and Max 11 A (TX).
General characteristics
- HAM bands
- 2m
- Frequency stability
- +/- 2.5 p.p.m.
- Tuning steps
- ?
- Memories
- 202 channels in 1 bank(s)
Receiver
- RX-range
- 87.5-108 / 108-174 / 335-480 MHz
- Modulations
- AM FM N-FM W-FM
- Sensitivity
- Main band: 0.2 µV or better (12 dB SINAD)
Sub band: 0.25 µV or better (12 dB SINAD) - Selectivity
- 12 kHz (-6 dB), 28 kHz (-60 dB)
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 21.7 MHz / 450 kHz
2nd: 45.1 MHz / 455 kHz - Image rejection
- ?
- Audio output
- 2W into 8 ohm @ 10% THD
Transmitter
- TX-range
- 144-148 / 430-450 MHz
- Modulations
- FM N-FM
- RF-output
- High: 50/35 W, Medium: 20/20 W, Low: 5/5 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC +/- 15%
- Current drain RX
- 500-700 mA
- TX
- Max 11 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 185 mm (5.51 × 1.57 × 7.28 in)
- Weight
- 1,000 gr (2.2 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2005 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Detachable control head. Theft alarm. CTCSS & DCS. Twin RX. 1200/9600 bd packet and GPS option (EJ-50U). 10F3 digital voice board (EJ-47U) option (requires at least two similarly equipped radios)
- Accessories
- -
- RigReference ID
- 2338
- MPN
- ALINCO-DR-000635T
Manuals, diagrams and brochures
- Alinco DR-635 Instruction manual PDF - Unknown size, submitted by RigReference
- Alinco DR-635 Service manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
Reviews
| Rating | Title | Submitted |
|---|---|---|
| Solid as! | 5 years ago by Mike | |
| The RX fix for the DR-620T. Great alternative to the big 3! | 9 years ago by rreh917 |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DR-635T. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Alinco DR-635T in Good condition is around:
- AUD 316
- USD 282
These estimates are based on the following prices:
