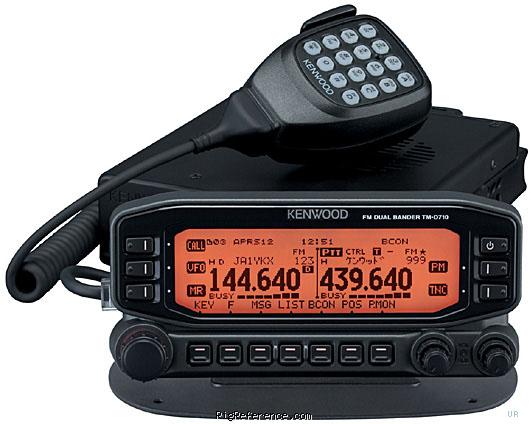

Kenwood TM-D710A

General characteristics

HAM bands

2m

Frequency stability

±5 p.p.m.

Tuning steps

?

Memories

?

Receiver

RX-range

136-524 / 800-1300 MHz (Cellular blocked)

Modulations

AM   FM

Sensitivity

146/440 MHz: <0.16 µV (12 dB SINAD)

Selectivity

-6 dB: More than 11 kHz
-40 dB: Less than 30 kHz

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

1st: 45.05 MHz (Band A), 49.95 MHz (Band B)
2nd: 455 kHz (Band A), 450 kHz (Band B)

Image rejection

?

Audio output

?

Transmitter

TX-range

144-148 / 430-450 MHz

Modulations

FM

RF-output

50 / 10 / 5 W

Connections

Antenna

-

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC ±15%

Current drain RX

1.2 A max

TX

13 A max

Physical

Dimensions (w×h×d)

140 × 43 × 142 mm (5.51 × 1.69 × 5.59 in) Panel: 155×138×70 mm

Weight

1.50 kg (3.3 lbs)

Form factor

Mobile

Manufactured

Between 2007 and 200x

Other features

Usage

Amateur / Ham radio operators

Features + options

Built-in TNC 1K2/9K6, APRS. Twin RX

Accessories

-

RigReference ID

3428

MPN

KENWOOD-TM-D000710A

Manuals, diagrams and brochures

TM-D710A SM PDF - 4.86 MB, submitted by Berend



Upload relevant documents

Reviews & stories

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TM-D710A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Kenwood TM-D710A is around:

• USD 85.00 ~ USD 57.00
• CAD 99.00 ~ CAD 65.00

Price History Chart

These estimates are based on the following prices:
