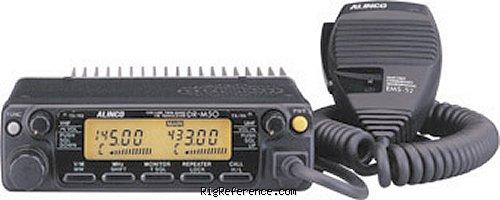

Alinco DR-M50H Mobile VHF/UHF Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Frequency range

RX-range
144-146 / 430-440 MHz
TX-range
144-146 / 430-440 MHz
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
FM
Sensitivity
-
Selectivity
6 kHz (-6 dB), 14 kHz (-60 dB)
Receiver system
-
IF-frequencies
-
Image rejection
60 dB
Audio output
-

Transmitter

Modulations
FM
RF-Output
High: 50/35 W, Low: 5/5 W

Connections

Antenna
-
Impedance
50 Ω

Electrical

Power requirements
13.8V DC
Current drain RX
1.2 A
TX
Max 11.5 A

Physical

Dimensions (w×h×d)
140 × 40 × 176 mm (5.51 × 1.57 × 6.93 in)
Weight
1.10 kg (2.4 lbs)
Form factor
Mobile
Manufactured
Between 200x and 200x in Japan
MPN

Other features

Memories
100 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Twin RX.
Accessories
-
