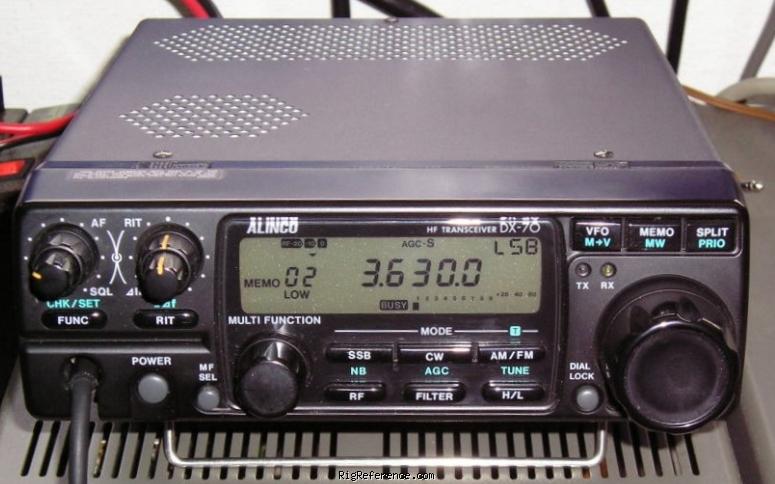

The Alinco DX-70TH is a desktop HF/VHF transceiver. It covers 0.15-30 / 50-54 MHz in receive and 10-160 m + WARC / 50-54 MHz in transmit. The RF output is 100W PEP (AM: 40W PEP). It features a detachable panel, CTCSS, 1 memory bank with 100 channels. Power requirements are 13.8V DC. Dimensions are 58 × 178 × 230 mm. Current drain is 0.8-1 A in receive and max 25A in transmit.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 100 channels in 1 bank(s)
Receiver
- RX-range
- 0.15-30 / 50-54 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- Better than 70 dB
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC / 50-54 MHz
- Modulations
- AM FM CW SSB
- RF-output
- 100 W/100 W (AM: 40/40 W)
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 0.8-1 A
- TX
- Max 25 A
Physical
- Dimensions (w×h×d)
- 178 × 58 × 230 mm (7.01 × 2.28 × 9.06 in)
- Weight
- 2.70 kg (6.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1997 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Detachable panel. CTCSS.
- Accessories
- -
- RigReference ID
- 2344
- MPN
- ALINCO-DX-000070TH
Manuals, diagrams and brochures
- Alinco DX-70 Instruction manual PDF - Unknown size, submitted by RigReference
- Alinco DX-70TH Service manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
Reviews
| Rating | Title | Submitted |
|---|---|---|
| Radio aquecendo ao ligar | 4 years ago by motavitor31 | |
| Tough mobile rig | 12 years ago by W4FJE | |
| Practical mobile rig | 13 years ago by KC5MO | |
| Good all purpose radio | 15 years ago by DMW |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DX-70TH. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Alinco DX-70TH in Good condition is around:
- USD 400 ~ USD 527
- EUR 591
These estimates are based on the following prices:
