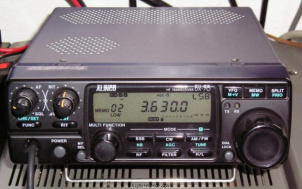

Alinco DX-70TH Desktop HF/VHF Transceiver

 (4.5/5)  Add a story   View all stories (3)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
0.15-30 / 50-54 MHz
TX-range
10-160 m + WARC / 50-54 MHz
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
AM   FM   CW   SSB
Sensitivity
-
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
Better than 70 dB
Audio output
-

Transmitter

Modulations
AM   FM   CW   SSB
RF-Output
100 W/100 W (AM: 40/40 W)

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
13.8V DC
Current drain RX
0.8-1 A
TX
Max 25 A

Physical

Dimensions (w×h×d)
178 × 58 × 230 mm (7.01 × 2.28 × 9.06 in)
Weight
2.70 kg (6.0 lbs)
Form factor
Base Station
Manufactured
Between 1997 and 19xx
MPN

Other features

Memories
100 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Detachable panel. CTCSS.
Accessories
-

Manuals, diagrams and brochures

Alinco DX-70 Instruction manual submitted by RigReference
Alinco DX-70TH Service manual submitted by RigReference

Upload relevant documents

Show other documents.

Stories & reviews

Good all purpose radio

Alinco DX-70TH, Desktop HF/VHF Transceiver

Recently I decided to try HF packing. Having located and securing an ALICE pack, planning how to equip it became the next priority. Over the years I had owned several different HF transceivers capable of man portable operation. After reading posts and reviews made by others pursuing this segment of our hobby, I chose the Alinco DX-70 for the task. It is a proven reliable rig and eHam reviews were encouraging. Also the used selling prices are reasonable. I found a nice one on QTH.com for $400 shipped.

Written by DMW on Jul 18, 2010

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2010
USD 400.00

Practical mobile rig

Alinco DX-70TH, Desktop HF/VHF Transceiver

I purchased my DX-70TH back on '97 and it is still in use today. The only failure was when EMP from a lightning strike to my QTH took out one of the dual diodes on one of the filter boards. The thing that I like about this radio is that there are very few bells and whistles that get in the way for mobile use. There are only two things that really wasn't thought out by Alinco which got it a 4 on ergonomics which was the PL tone frequency dip switched on the bottom of the radio which is just plain goofy. Also, the separate RF connector for meters is awkward depending on your configuration. Again, there are no menus to get lost in and it is straight forward and easy to use. Just wonder why the DX-SR8T/E, the DX-70's replacement, doesn't support 6 meters.

Written by KC5MO on Jun 16, 2012

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 1997
USD 850.00

Tough mobile rig

Alinco DX-70TH, Desktop HF/VHF Transceiver

I've owned the DX-70 since they came out in the late 90's. It's been exclusively a mobile rig although I have used in in the shack. As a mobile rig it is a pileup buster! Many DX stations worked through pileups. I teamed it with a Clear Speech DSP amplifier. Many hams complain about the noise blanker however simply reducing the RF gain (att) makes it shine! It will reduce noise 20-40 db. Rig is 17 years old and I'm looking to putting the new Alinco in the mobile.

Written by W4FJE on Jun 5, 2013

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 1997
USD 0.00

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Alinco DX-70TH. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the Alinco DX-70TH might be around:

  • USD 198.00
Price Condition Year User
USD 850.00 New / Good 1997 KC5MO
USD 400.00 Used / Good 2010 DMW
USD 400.00 Used / Good 2010 DMW
